PPMS is an open architecture, variable temperature-field system, designed to perform a variety of automated measurements, including resistivity, heat capacity, ac/dc magnetometry, and thermal transport. The PPMS can be used with specially-designed measurement options, or easily adapt it to your own experiments. Sample environment controls include fields up to ±14 tesla and temperature range of 1.9 - 400 K. Its advanced expandable design combines many features in one instrument to make the PPMS the most versatile system of its kind.
Specifications and capabilities of PPMS-14 Tesla
- Temperature and magnetic field dependent measurements
- Temperature range: 1.9K – 400 K (with oven option)
- Magnetic field range ±14 Tesla
- Options available:
- Resistivity
- Heat Capacity
- AC/DC magnetometry
- Torque magnetometry
- Thermal Transport
- Horizontal Rotator
User Rates
Rates will be based on an hourly or per sample basis and will be decided after consultation with the customer.
Hourly rates for instrument use
Assigned Use: $10/hr.*
Training: $25/hr.
Self-Use: $5/hr.
Consumables charged at cost.
Contact Us
Dr. Leonard Spinu
Email: lspinu@uno.edu

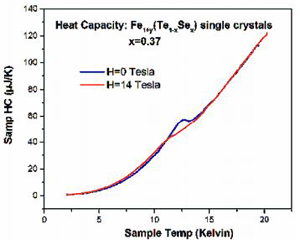

Sample Data
